Single Interface Light Detector Is Used To Detect The Interface Of Infusion Bag, Connected With The Host, High Efficiency, Stability

Technical Description.

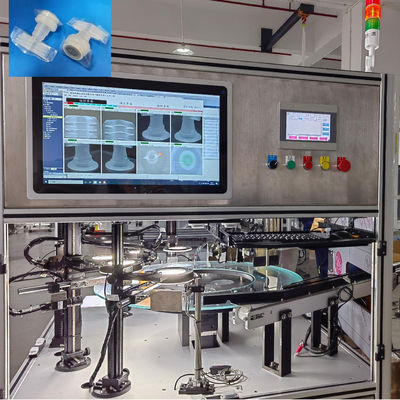

Output:390-400pcs per minute, including 1 set of image inspection mainframe, 1 set of vibrating disk, 1 set of loading machine

Products from the distribution tray over to the glass plate --- products through the guide mechanism, and then detect the product to take the signal --- 360
degree image inspection of the product + front side inspection (5 cameras) --- image from bottom to top inspection of the product (1 camera) --- image from top to top inspection of the product (1 camera)
(1 camera) --- Image from top to bottom inspection products (1 camera) --- out of good products --- defective products

Features

• For products requiring appearance check, physical inspection, replace traditional artificial eyesight inspection.
• Inspection scope: insufficient injection molding (lack of material), injection deformation, injection molding bubbles, foreign bodies on surface exceed 0.3mm, missing parts, incorrect assembly, inaccurate location of parts, assembly deformation.
• Automatic feeding, high-speed 360 degrees’ inspections without blind angle, automatic elimination of dirty products.
• Conveyor belt exit can be equipped with electrostatic removal device.
• Parts and control mode meet GMP requirements for pharmaceutical packaging material production.
• PLC automatic control system. Touch screen HMI operation.
