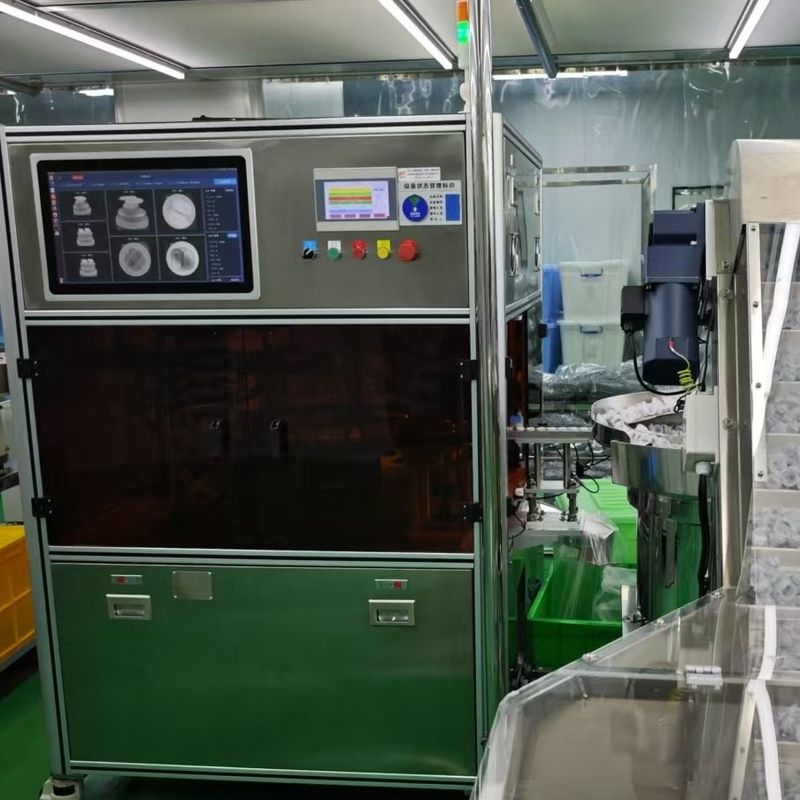

Electrostatic Removal Device Equipped Video Inspection Machine For Clean And Accurate Inspections

Brand Name:	Sencan
Model Number:	SC-PT-413
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Qualified Rate:

99%

Software:

Image Analysis System

Link:

Vibration Disc+loading Machine

Lighting Source:

LED

Communication Interface:

Ethernet

Control:

PLC

Applicable Products:

Infusion Bag Single Interface

Function:

Automated Assembly Of Medical Products

Illumination:

LED

Certifications:

CE, ISO 9001

Main Power:

Servo Motor + Indexing Drive

Resolution:

High Definition

Frequency:

50Hz/60Hz

Operation Rate:

96%

Packaging Details:

wooden case

Highlight:

Clean Video Inspection Machine

Electrostatic Removal Video Inspection Machine

Accurate Video Inspection Machine

Product Description

Features

1.For products requiring appearance check, physical inspection, replace traditional artificial eyesight inspection.

2.False detection rate not exceed 0.3%.

3.Inspection scope: insufficient injection molding (lack of material), injection deformation, injection molding bubbles, foreign bodies on surface exceed 0.3mm, missing parts, incorrect assembly, inaccurate location of parts, assembly deformation.

4.Automatic feeding, high-speed 360 degrees’ inspections without blind angle, automatic elimination of dirty products.

5.Conveyor belt exit can be equipped with electrostatic removal device.

6.Parts and control mode meet GMP requirements for pharmaceutical packaging material production.

7.PLC automatic control system. Touch screen HMI operation.

Properties

Applicable products	All products requiring appearance inspection
Production speed	15000-20000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depends on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 2kw, compressed air:7kg/m³
Dimension	Actual size varied with different production speed
Weight	1000kg
Operator	3set/person
