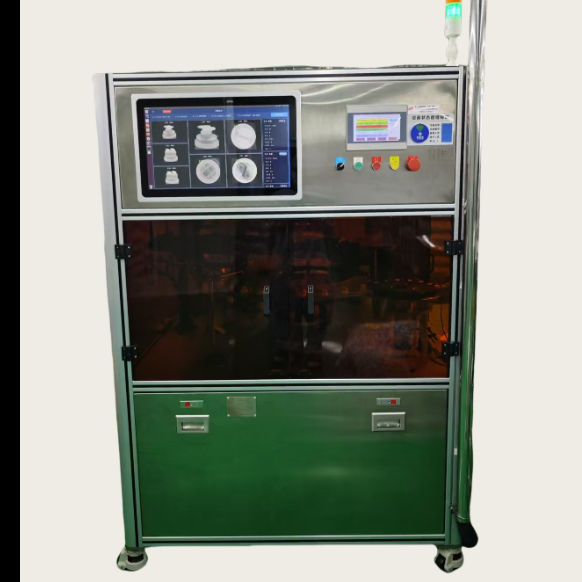

Camera Inspection Vision Detection Machine and 250-280 per/hour Capacity

Large Image : Camera Inspection Vision Detection Machine and 250-280 per/hour Capacity

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-647

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate the price according to the actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Link:	Vibration Disc+loading Machine	Packing:	Wooden Case
Inspection Speed:	Up To 280 Units Per Minute	Application:	Inspection Machine
Lighting Type:	LED	Power Supply:	110V - 240V
Capacity:	According To Customer's Requirement	Warranty:	1 Year
Lighting:	LED	Illumination:	LED

Features

1. For products requiring appearance check, physical inspection, replace traditional artificial eyesight inspection.

2. False detection rate not exceed 0.3%.

3. Inspection scope: insufficient injection molding (lack of material), injection deformation, injection molding bubbles, foreign bodies on surface exceed 0.3mm, missing parts, incorrect assembly, inaccurate location of parts, assembly deformation.

4. Automatic feeding, high-speed 360 degrees’ inspections without blind angle, automatic elimination of dirty products.

5. Conveyor belt exit can be equipped with electrostatic removal device.

6. Parts and control mode meet GMP requirements for pharmaceutical packaging material production.

7. PLC automatic control system. Touch screen HMI operation.

Properties

Applicable products	All products requiring appearance inspection
Production speed	15000-20000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depends on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 2kw, compressed air:7kg/m³
Dimension	Actual size varied with different production speed
Weight	1000kg
Operator	3set/person
