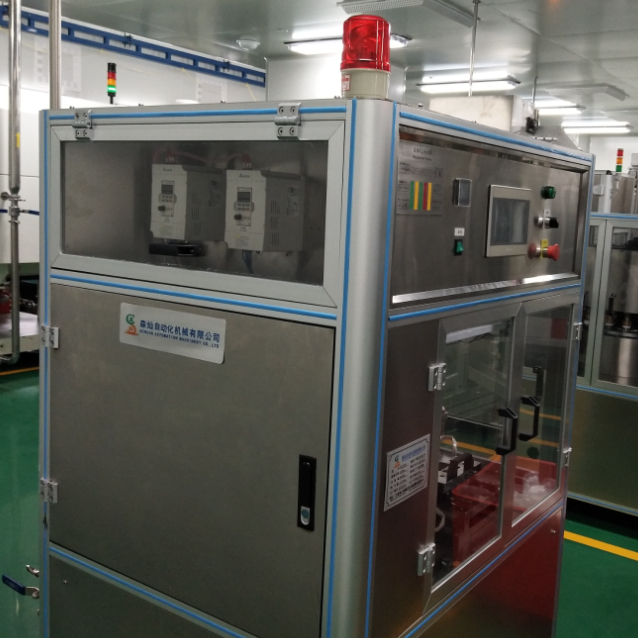

Vision Inspection Machine 280-300pcs/min LCD Touchscreen

Brand Name:	SENCAN
Model Number:	SC-TP-758
MOQ:	1 set
Price:	Negotiate the price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Packing:

Wooden Case

Material:

Stainless Steel

Inspection Type:

Visual Inspection

Operation:

HMI

Air Pressure:

0.6-0.8MPa

Lighting Source:

LED

Warranty:

1 Year

Compressed Air:

5kg/m3

Air Pressure Gauge:

SMC

Maximum Inspection Speed:

280-300 Pieces/minute

Frequency:

50Hz/60Hz

Inspection Method:

Video Imaging

Capacity:

4500-20000

Display:

LCD Touchscreen

Packaging Details:

Wooden case

Highlight:

Vision inspection machine LCD touchscreen

Video inspection machine 280-300pcs/min

LCD touchscreen inspection machine

Product Description

Features

1. For products requiring appearance check, physical inspection, replace traditional artificial eyesight inspection.

2. False detection rate not exceed 0.3%.

3. Inspection scope: insufficient injection molding (lack of material), injection deformation, injection molding bubbles, foreign bodies on surface exceed 0.3mm, missing parts, incorrect assembly, inaccurate location of parts, assembly deformation.

4. Automatic feeding, high-speed 360 degrees’ inspections without blind angle, automatic elimination of dirty products.

5. Conveyor belt exit can be equipped with electrostatic removal device.

6. Parts and control mode meet GMP requirements for pharmaceutical packaging material production.

7. PLC automatic control system. Touch screen HMI operation.

Properties

Applicable products	All products requiring appearance inspection
Production speed	15000-20000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depends on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 2kw, compressed air:7kg/m³
Dimension	Actual size varied with different production speed
Weight	1000kg
Operator	3set/person
