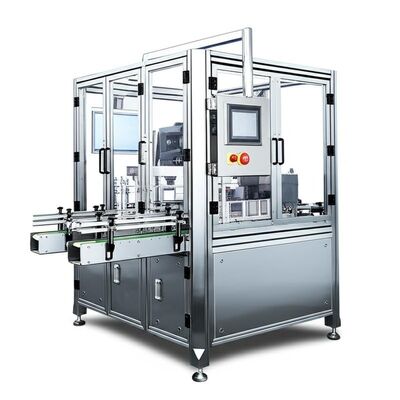

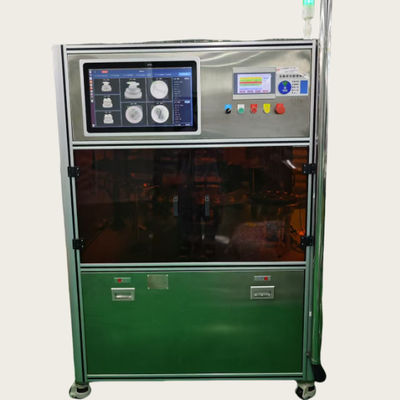

Video Inspection Machine with Up to 280 Units per Minute, False Detection Rate ≤0.3%, and 1000kg Robust Construction

Large Image : Video Inspection Machine with Up to 280 Units per Minute, False Detection Rate ≤0.3%, and 1000kg Robust Construction

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-287

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Contact Now

Detailed Product Description

Control System:	PLC	Program:	Self-written
Camera Type:	High Speed	Illumination:	LED
Applications:	Electronics, Automotive, Medical Device Inspection	Application:	Industrial Inspection
Inspection Speed:	Up To 280 Units Per Minute	Inspection Type:	Visual And Dimensional Inspection
Highlight:	Up to 280 units per minute Video Inspection Machine , False Detection Rate ≤0.3% Vision Inspection Machine , 1000kg Weight Image Inspection Machine

Video Inspection Machine

Featuring robust construction and precise imaging systems for consistent inspection performance in industrial applications.

Key Features

Automates appearance checks and physical inspections, replacing manual visual inspection
False detection rate below 0.3% for reliable quality control
Comprehensive inspection scope including:
- Insufficient injection molding (material deficiency)
- Deformation and bubbles in molded parts
- Surface contaminants exceeding 0.3mm
- Missing or incorrectly assembled components
- Part misalignment and assembly deformation
Automatic feeding with 360° inspection coverage and no blind spots
Optional electrostatic removal device at conveyor belt exit
GMP-compliant components and control systems for pharmaceutical packaging
PLC automatic control with touch screen HMI for intuitive operation

Technical Specifications

Applicable Products	All products requiring appearance inspection
Production Speed	15,000-20,000 pieces/hour (customizable)
Qualified Product Rate	Above 98% (dependent on semi-finished product quality)
Operation Rate	Above 95%
Power Requirements	AC380V, 50Hz, 2kW Compressed air: 7kg/m³
Dimensions	Varies according to production speed requirements
Weight	1000kg
Operator Requirement	3 sets per person
