High-Speed Video Inspection Machine with 15-inch LCD Touchscreen for 98% Qualified Rate in Electronics and Automotive Components

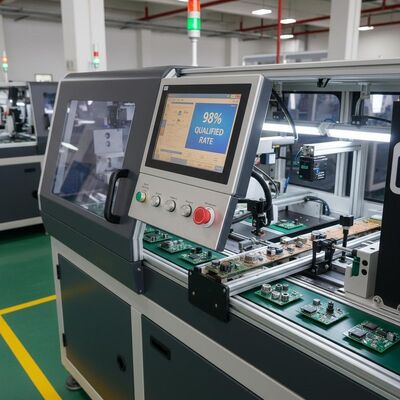

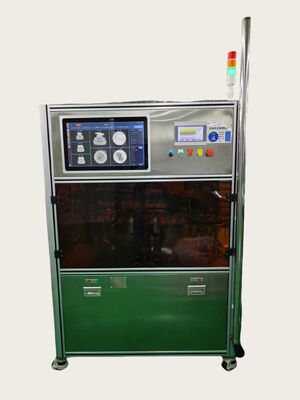

Large Image : High-Speed Video Inspection Machine with 15-inch LCD Touchscreen for 98% Qualified Rate in Electronics and Automotive Components

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-872

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	L/C,T/T
Supply Ability:	2-20 sets

Contact Now

Detailed Product Description

Maximum Inspection Speed:	280-300 Pieces/minute	Main Power:	Servo Motor + Indexing Drive
Function:	Automated Assembly Of Medical Products	Application:	Electronics, Precision Engineering, Quality Control
Display:	15-inch LCD Touchscreen	Power Supply:	AC 110-240V, 50/60Hz
Type:	Industrial Inspection Equipment	Lighting Source:	LED
Lighting Type:	LED	Packing:	Wooden Case
Magnification:	Adjustable
Highlight:	280-300 pieces/minute Video Inspection Machine , 15-inch LCD touchscreen Vision Inspection Machine , 98% qualified rate Image Inspection Machine

Automated Video Inspection Machine

Advanced visual inspection system designed for automated quality control of electronics and automotive components, replacing traditional manual inspection methods.

Key Features

Automated appearance and physical inspection replacing manual visual checks
False detection rate below 0.3%
Comprehensive inspection scope including: insufficient injection molding, deformation, bubbles, surface contaminants (>0.3mm), missing parts, incorrect assembly, part misalignment, and assembly deformation
Automatic feeding with high-speed 360° inspection coverage and automatic rejection of defective products
Optional electrostatic removal device at conveyor belt exit
GMP-compliant components and control systems for pharmaceutical packaging materials
PLC automatic control with touch screen HMI operation

Technical Specifications

Applicable Products	All products requiring appearance inspection
Production Speed	15,000-20,000 pcs/hr (customizable to requirements)
Qualified Product Rate	Above 98% (dependent on semi-product quality)
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 2kW, Compressed air: 7kg/m³
Dimensions	Customized based on production speed requirements
Weight	1000kg
Operator Requirements	3 sets per person
